KHN system

The KHN system is the most versatile system of recess formers and lifting devices that can be used. On applications around the universal lifting device Lifty resp. Lifty with wire rope the main focus is set here.

System suitable for all load directions (axial, diagonal and lateral tension)
Continuous colour coding enables clear assignment of system components
Solutions made of plastic or stainless steel complete the system with practical or visually attractive sealing caps
Durable and reusable system devices

Lifting loop with threaded end

For the complete range of PHILIPP Threaded transport anchors the Lifting loop with threaded end, consisting of a galvanised wire rope, can be used for axial and diagonal tension.

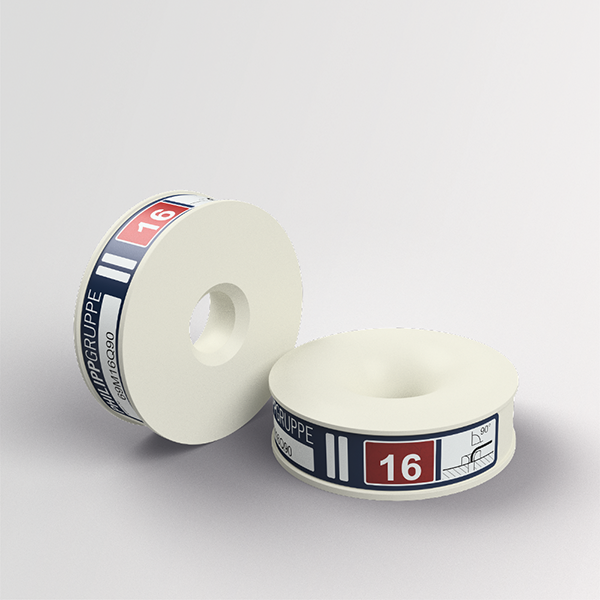

Adapter for lateral tension

For the use of a Lifting loop with threaded end with lateral tension up to 90° the special Adapter for lateral tension is available.

Lifty

For a daily use in the precast plant or on the construction site the Lifty is a robust and universally applicable lifting device for the PHILIPP threaded anchor system. It consists of a forged ring bolt with a welded chain link, both galvanised.

Lifty with wire rope

The Lifty with wire rope is a universally applicable lifting device for the PHILIPP threaded anchor system. It consists of a forged ring bolt with a thread and galvanised pressed-steel wire rope.

KHN system

The KHN system is the most versatile system of recess formers and lifting devices that can be used. On applications around the universal lifting device Lifty resp. Lifty with wire rope the main focus is set here.

Marking ring with clip

A marking ring identifies a threaded anchor in installed condition and fixes the position of an additional reinforcement by its clip.

Marking ring

Both, the identification of a threaded anchor in installed condition as well as a quick assignment to the corresponding lifting device is done by the marking ring with its color-code.

Sealing cap (plastic)

Sealing caps (plastic) close threaded inserts of all sizes independent of a recessed or surface-flush installation of the anchor.
